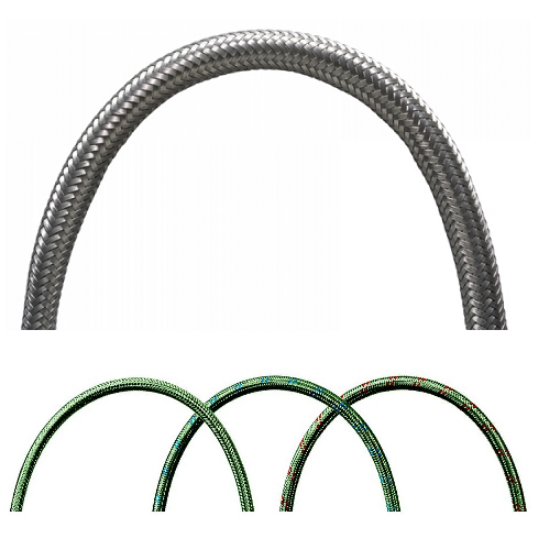

Mould-Shop. Stainless Steel Braided

Customers who bought this item also bought

Deburring Tools

Light Duty tool for fine de-flashing and deburring.

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	Material	Color	D1 (mm)	D (mm)	Max °C	Bend radius	L (m)
SV.10.25	viton	silver	10	15	200	50	25
SV.13.25	viton	silver	13	19	200	60	25
SS.10S.25	silicon	silver	10	15	160	40	25
SS.10R.25	silicon	red	10	15	160	40	25
SS.10B.25	silicon	blue	10	15	160	40	25
SS.13S.25	silicon	silver	13	19	160	60	25
SS.13R.25	silicon	red	13	19	160	60	25
SS.13B.25	silicon	blue	13	19	160	60	25
SS.19S.25	silicon	silver	19	29	160	100	25
SS.19R.25	silicon	red	19	29	160	100	25
SS.19B.25	silicon	blue	19	29	160	100	25
