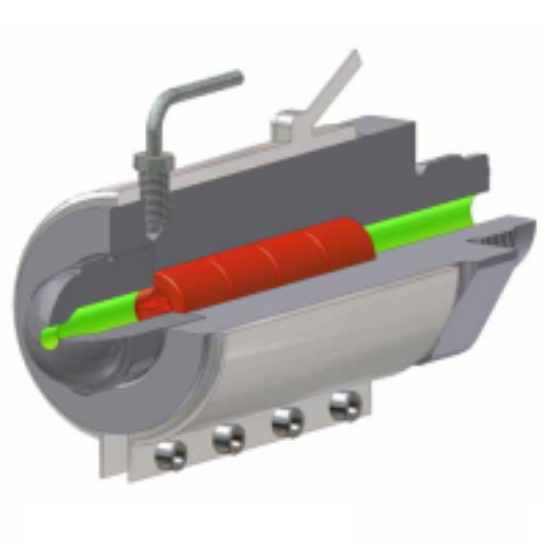

FMD Plus mixing nozzles

Mixing Nozzles FMD static wing-mixer with 3 or 4 elements adequate for screw diameters up to 130 mm. For high quality plastic parts, it is necessary to have a thermal homogeneous melt. The regular homogeneity of additives like flame retardant and UV-stabilizer are also a guarantor for high quality plastic parts as color and thermal mixing. The high blend power of the mixing-nozzle ensures saving of color-batches and other additives.

Model Type

FMD 0 [+€1450.00]
FMD I [+€1650.00]
FMD II [+€1800.00]

Name	Screw Ø (mm)	Mixing insert (pcs)	Length (mm)	C1 (mm)	C2 (mm)	SW1 (mm)	SW2 (mm)
FMD 0 Plus	10-35	4	122	24	45	27	46
FMD I Plus	30-75	4	128 / 148	30	60	32	60
FMD II Plus	70-130	4	148 / 168	30	60	32	60

Specification of FMD Plus mixers:

available for unscrewed for cleaning from mould and machine side
max. injection pressure 2000 bar
thermally homogeneous melt
uniform melt viscosity also with high regenerate portion
closer tolerances, better surface quality of theshaped parts, that means less discarded parts
homogeneous colour distribution ➝ streak-free products, reduced colouring material costs
amortization by production advantages within a short time
self-cleaning, no dead corners
