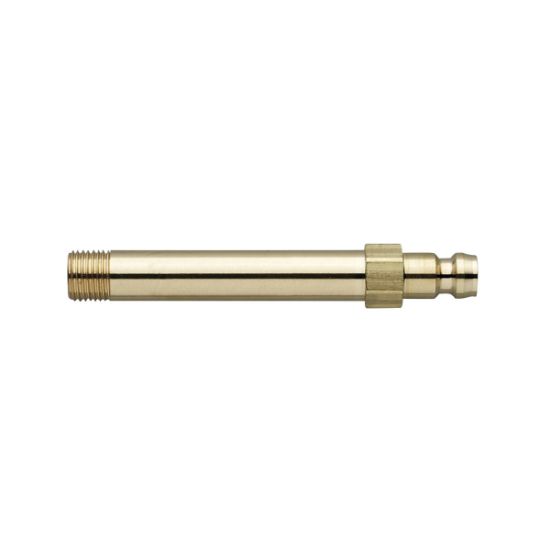

Extended Nipple, Threaded

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	SW	Ø (mm)	L (mm)	L1 (mm)	A	D (mm)	Qty (pcs)
09NM10-60	11	6	60	9	M10X1	9	10
09NM10-100	11	6	100	9	M10X1	9	10
09NM10-150	11	6	150	9	M10X1	9	10
09NR1/8-60	11	6	60	9	1/8"	9	10
09NR1/8-100	11	6	100	9	1/8"	9	10
09NR1/8-150	14	6	150	12	1/8"	9	10
09NR1/4-60	14	6	60	12	1/4"	9	10
09NR1/4-100	14	6	100	12	1/4"	9	10
09NR1/4-150	14	6	150	12	1/4"	9	10
13NR1/4-60	14	9	60	12	1/4"	13	10
13NR1/4-100	14	9	100	12	1/4"	13	10
13NR1/4-150	14	9	150	12	1/4"	13	10
