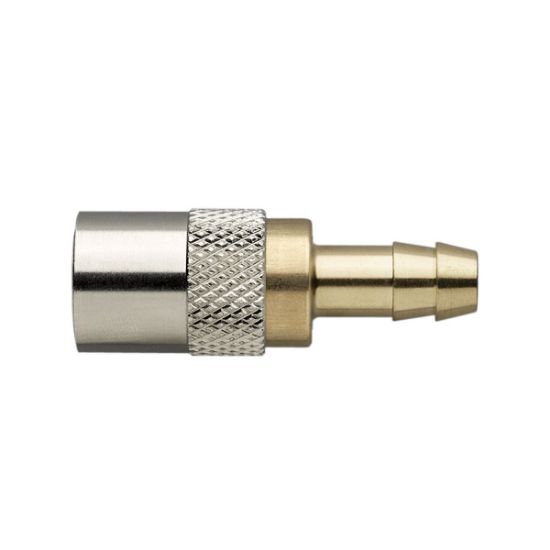

Coupling Straight Tail

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	Valve	Ø (mm)	L (mm)	L1 (mm)	A (mm)	D (mm)	Qty (pcs)
20K6V	yes	4.5	46	17	6	18	10
20K6	no	4.5	46	17	6	18	10
20K10V	yes	6	51	22	10	18	10
20K10	no	6	46	17	10	18	10
20K13V	yes	9	51	22	13	18	10
20K13	no	9	46	17	13	18	10
30K10V	yes	9	64	22	10	24	10
30K10	no	9	64	22	10	24	10
30K13V	yes	9	66	25	13	24	10
30K13	no	9	66	25	13	24	10
50K19V	yes	16	89	32	19	32	10
50K19	no	16	89	32	19	32	10
