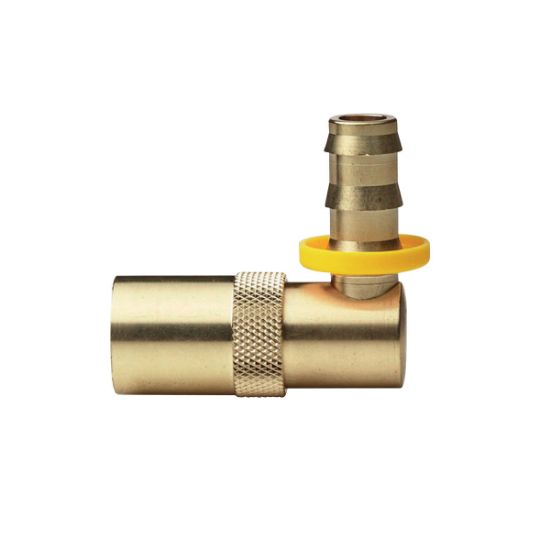

Coupling 90° Tail (Push-Lock)

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.
NameValveØ (mm)L (mm)L1 (mm)A (mm)D (mm)Qty (pcs)
20K10V-90-PLyes64028101810
20K10-90-PLno64028101810
30K10V-90-PLyes76128102310
30K10-90-PLno76128102310
30K13V-90-PLyes96128132310
30K13-90-PLno96128132310





Please select a model from the table above to continue

Please login to view prices
