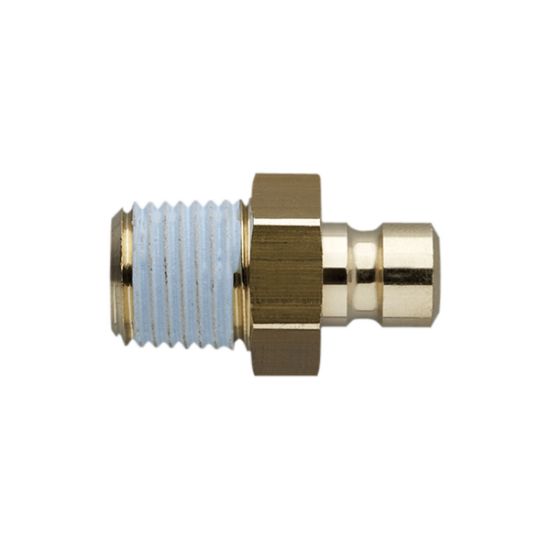

Connector Nipple Male

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	Valve	SW	Ø (mm)	L (mm)	L1 (mm)	A (mm)	D (mm)	Qty (pcs)
20NM10	no	13	6	23	8	M10x1	9	25
20NR1/8	no	13	6	24	9	R1/8	9	25
20NR1/4	no	16	6	29	14	R1/4	9	25
20NR1/4V	yes	16	6	29	14	R1/4	9	25
20NR3/8	no	19	6	30	12	R3/8	9	25
30NR1/8	no	14	9	29	20	R1/8	13	25
30NR1/4	no	16	9	34	12	R1/4	13	25
30NR1/4V	yes	16	9	34	12	R1/4	13	25
30NR3/8	no	19	9	34	12	R3/8	13	25
30NR3/8V	yes	19	9	34	12	R3/8	13	25
30NR1/2	no	24	9	39	17	R1/2	13	25
50NR1/2	no	22	16	44	17	R1/2	19	25
50NR3/4	no	29	16	45	19	R3/4	19	25
