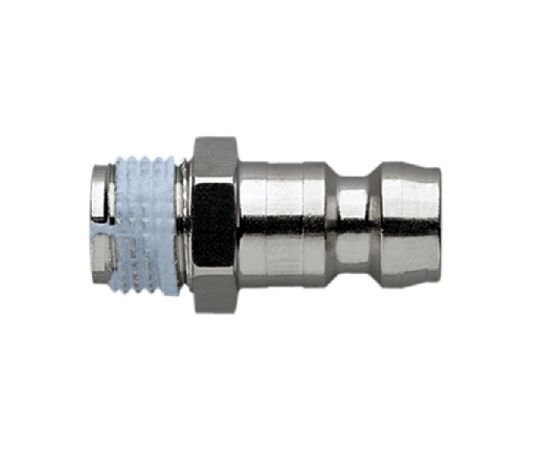

Connector Nipple Male

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	Valve	SW	Ø (mm)	L (mm)	L1 (mm)	A (mm)	D (mm)	Qty (pcs)
09NM8	no	11	6	24	7	M8x0,75	9	25
09NM10	no	11	6	24	7	M10x1	9	25
09NR1/8	no	11	6	24	7	G1/8	9	25
09NM12	no	14	6	27	10	M12x1,5	9	25
09NM14	no	15	6	9	9	M14x1,5	9	25
09NM14V	yes	15	6	29	12	M14x1,5	9	25
09NR1/4	no	15	6	26	9	G1/4	9	25
09NR1/4V	yes	15	6	12	12	G1/4	9	25
09NR3/8	no	17	6	30	10	G3/8	9	25
13NR1/8	no	14	9	25	8	G1/8	13	25
13NM14	no	15	9	26	9	M14x1,5	13	25
13NR1/4	no	15	9	26	9	G1/4	13	25
13NR1/4V	yes	15	9	29	12	G1/4	13	25
13NM16	no	17	9	26	9	M16x1,5	13	25
13NM16V	yes	17	9	30	12	M16x1,5	13	25
13NR3/8	no	17	9	26	9	G3/8	13	25
13NR3/8V	yes	17	9	30	12	G3/8	13	25
19NM24V	yes	27	13	51	16	M24x1,5	19	25
19NM24	no	27	13	51	16	M24x1,5	19	25
19NR1/2	no	22	13	47	12	G1/2	19	25
19NR1/2V	yes	22	13	47	12	G1/2	19	25
19NR3/4	no	27	13	51	16	G3/4	19	25
19NR3/4V	yes	27	13	51	16	G3/4	19	25
