Picture of Standard Clamp / Screw

Picture of Standard Clamp / Screw

Picture of Standard Clamp / Screw

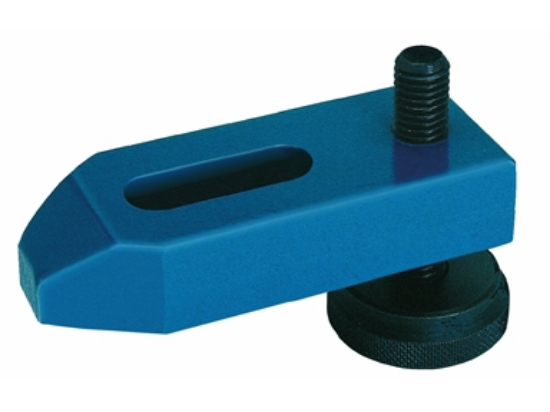

Standard Clamp / Screw

Material: Hardening painted steel; R. > 700 N/mm2. Supplied without adjustable screw

Model Type

CL1.11080 [+€28.00]
CL1.14100 [+€32.00]
CL1.18125 [+€39.00]
CL1.22160 [+€51.00]

Model	A (mm)	B (mm)	L (mm)	H (mm)	C (mm)	D (mm)	Thread Ø	G (mm)
CL1.11080	15	30	80	15-45	11	30	M10	10
CL1.14100	20	40	100	15-40	14	40	M12	12
CL1.18125	25	50	125	15-45	18	45	M16	15
CL1.22160	30	60	160	15-50	22	60	M20	18
