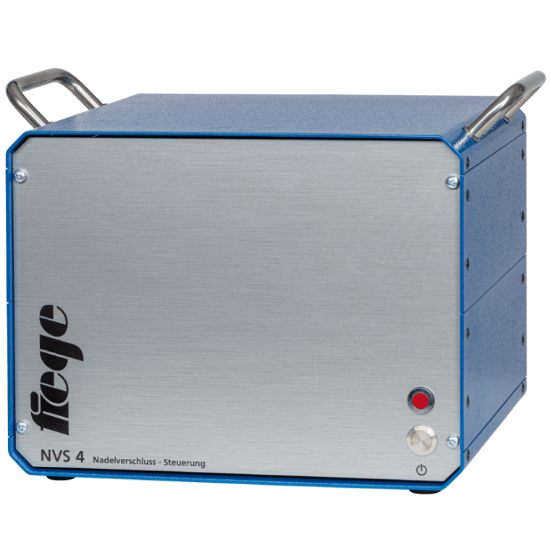

NSV-Plus needle valve controller

Combined with the temperature controllers of the TP and VARIO series needle valve-control NSV and pressure measurement system DMS can be visualized through existing temperature controller. With this development, we set the standard in terms of ease of operation. NVS is optionally available with end position control and can be used irrespective of the hot runner manufacturer. NSV plus version allows with piston end position controls.

Name / Description

ZonesSize: WxHxD (mm)Weight (kg)
NVS 4 plus4341x260x2508
NVS 8 plus8341x260x2508
NVS 12 plus12341x260x2508
NVS 16 plus16341x260x2508
NVS 20 plus20341x345x25012
NVS 24 plus24341x345x25012
NVS 28 plus28341x345x25012
NVS 32 plus32341x345x25012

The main features:

  • Compact add-on device
  • for 4 to 32 zones in steps of 4
  • 24V DC control mechanism
  • Operation via hot runner control devices
  • Flexible visualisation
  • Plus version is with end position controls

If you would like us to cover some of the additional questions you might have, please get in touch.



€3400.00
